Brickcon 2013 L3-G0 Setup

L3-G0 Made it to Brickcon!!!

Whew, that was way more complicated that I expected.  Especially since the new! lights blew up at 1:30 AM.

But he made it, here's a quick clip of L3-G0 doing his thing and some of the other MOCs at Brickcon 2013 (Oct 6/7).




Robotics

Right now L3-G0 is using FOUR computers:

  • Perhaps counterintuitively, a Lego EV3 Mindstorms to make his head spin
  • An Arduino for the blinking lights.
  • A Microsoft Surface for the sound effects (looping audio track)
  • And a Surface Pro that programmed the Arduino and the EV3, at the moment needed to trigger the EV3 (start button's buried), and was using it to tune the dome program for the conference today and tomorrow.

Wednesday, October 2, 2013

L3-G0 is Ready for Brickcon!

Yippee!  All ready for Brickcon 2013 (October 5-6 at the Seattle Center)  He's not going to have feet at Brickcon because that's going to be another very huge undertaking.


I didn't have a ton of time to post, so a lot happened.  The dome sits on a bearing, so that had to be mounted and bolted on.  The dome also basically fell apart and had to be rebuilt... better... stronger... faster... (yes faster, and it didn't even cost me Six Million Dollars).

Nikita helped test the dome:


The bearing and dome base rest on a support that is made from the hinges that hold the panels together.  There are two motors for the Lego EV3 Mindstorms (this is the largest Mindstorms robot I've built by far).  Two because they push a lot better than they pull.  The wheels will rest on the inside of the bearing, attached to the dome of L3-G0.  On the right, near L3-G0's blue front you can see a color/light sensor.  The light sensor is used so the EV3 knows when he's facing forward.


And here it is with the dome base on.  You can see that the plates on the base of the dome ring are bolted to the aluminum bearing.  The bearing has a plastic support ring on top of it, also to keep it from dragging the dome bottom on the static side of the bearing.

The bottom of the bearing is mounted to 1/4" plywood, seen here from inside the body, before the dome ring was installed on top.

 The dome itself has been strengthened, and stays together much better now.

Also finally got the shoulders finished.  Lots of bits weren't perfectly aligned in the Lego Digital Designer (LDD), and LDD also doesn't show you how to attach 12 pieces from different directions at the same time!  Getting everything to snap together right was a bit challenging.

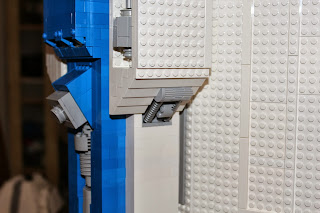

I like the detail on the shoulders, and also I like the "Under Shoulder Detail" (R2 Builders Club Lingo):


I show his dome spinning at the end.  I'll have a better video of that later, but here's what I have so far:
